Types of MCB: The world we live in is directly wired with a wide assortment of electrical appliances and machinery for homes and offices; this amplifies the importance of absolute safety being granted to electrical installations. That’s when the MCBs come into play.
As a house proprietor, building builder, or basically somebody looking to overhaul an power supply organization, understanding how MCBs work and for what reason they are valuable can offer assistance and advise safety-conscious choices.

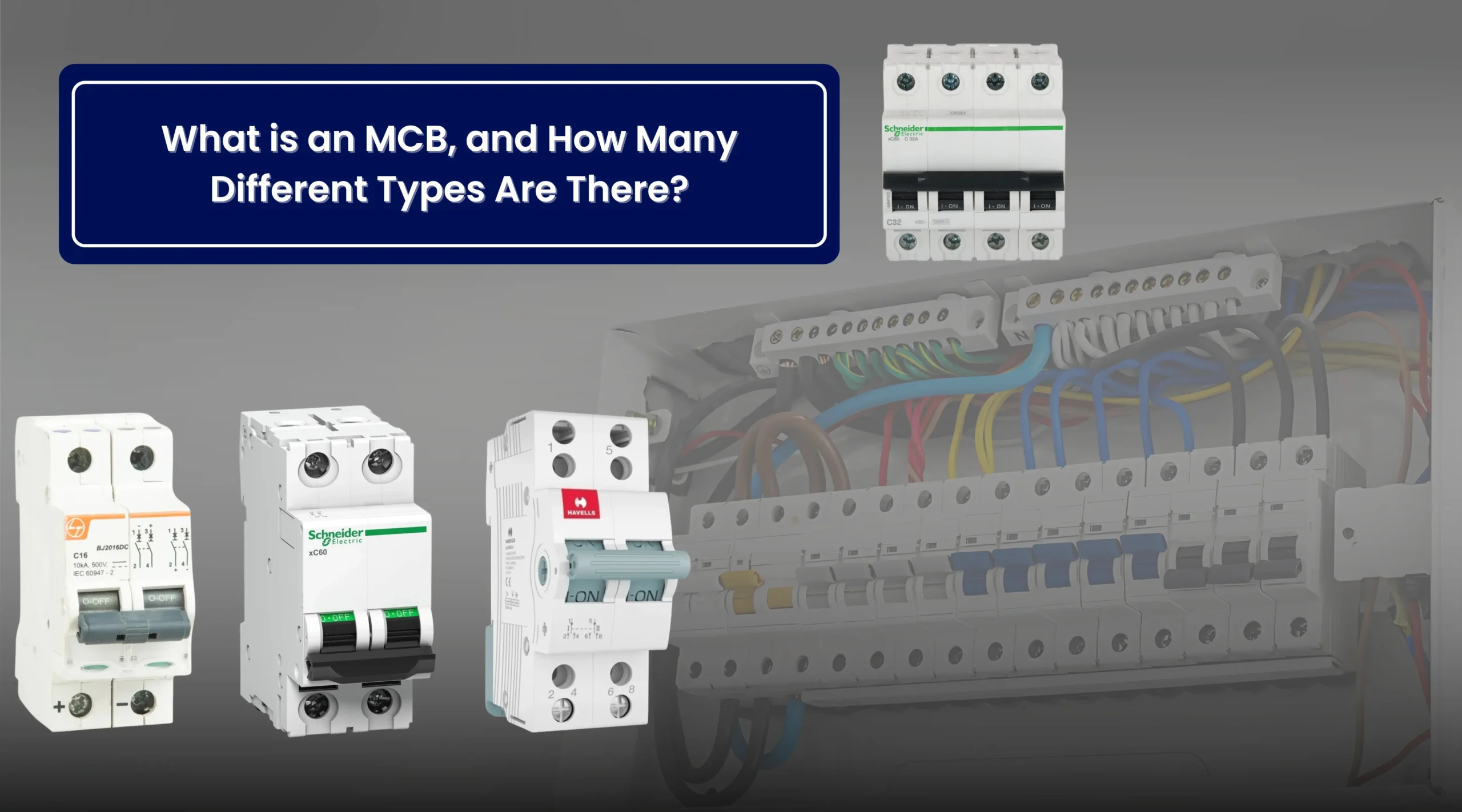

What Is an MCB?
An MCB (Scaled down Circuit Breaker) is an programmed electrical switch that ensures electrical circuits from harm caused by over-burden or brief circuit. When as well much current streams through a circuit, the MCB rapidly trips and cuts off the control — avoiding overheating, electrical fires, or harm to machines.
Not at all like conventional wires, MCBs are resettable, more solid, and long-lasting. You essentially switch them back on after settling the issue, making them a shrewd and secure arrangement for present day buildings.
Why Are MCBs So Important?
Envision running all your lights, fans, and apparatuses — and after that one defective wire causes a surge of power. Without security, that surge may devastate your gadgets or indeed begin a fire. MCBs prevent this by automatically turning off the circuit the moment they detect danger.
They’re not just for homes — MCBs are used in offices, hospitals, industrial plants, and every place where electricity powers machines and devices.
The 6 Types of MCBs and Their Uses
There’s no one-size-fits-all MCB. Depending on the type of load and application, different MCB types are used. Here’s a breakdown:
1. Type A MCB
Trip Range: 2 to 3 times the rated current.
Best For: Very sensitive electronic equipment or specialized manufacturing tools.
Why Choose It: Offers the highest sensitivity and quickest protection.
2. Type B MCB
Trip Range: 3 to 5 times the rated current.
Best For: Residential circuits – lighting, fans, and low-power appliances.
Why Choose It: It’s the go-to choice for home electrical safety.
3. Type C MCB
Trip Range: 5 to 10 times the rated current.
Best For: Commercial buildings – discuss conditioners, computers, printers.
Why Select It: Handles somewhat heavier loads with ease.
4. Type D MCB
Trip Run: 10 to 20 times the appraised current.
Best For: Mechanical setups – engines, transformers, and overwhelming
Why Choose It: Manages high inrush current effectively.
5. Type K MCB
Trip Range: 8 to 12 times the rated current.
Best For: Compressors, large motors, and X-ray machines.
Why Choose It: Designed for devices that have frequent current spikes.
6. Type Z MCB
Trip Range: 2 to 3 times the rated current (ultra-sensitive).
Best For: Highly sensitive electronics – medical equipment, control panels.
Why Choose It: Ensures ultra-fast protection for delicate devices.
Real-World Applications of MCBs
You’ve probably seen an MCB without realizing it — that small switch inside your electrical distribution board that “trips” during a voltage spike. Here’s where they’re used most:
Homes
Secures ordinary apparatuses like TVs, lights, and fridges.
Guarantees indeed control dissemination and dodges changes.
Workplaces & Commercial Spaces
Keeps discuss conditioning, computers, and printers secure.
Prevents data loss and equipment damage.
Industries
Manages large machines and motors efficiently.
Prevents major electrical hazards in factories and plants.
Heaters & High Load Devices
Avoids fire dangers due to overheating or brief circuits.
Especially useful in winter or high-energy environments.
Types of MCB Distribution Boards
Depending on the type of connection and how many phases are used, MCBs are paired with specific distribution boards:
SP (Single Pole) – For one-phase protection (common in homes).
DP (Double Pole) – Controls phase + neutral.
TP (Triple Pole) – Used for three-phase equipment.
TPN (Triple Pole + Neutral) – Ensures full protection, including neutral.
4P (Four Pole) – All-inclusive protection, including neutral isolation.
MCB vs Fuse – What’s Better?
While fuses have been around for decades, MCBs are the smarter alternative:
Feature Fuse MCB
Reusability No (must replace) Yes (just reset)
Accuracy Lower High
Speed Slower Fast and responsive
Safety Manual handling Safer, automatic trip
Last Considerations
Choosing the correct MCB can spare your property, ensure costly hardware, and indeed avoid life-threatening mishaps. Whether you wish a Sort B MCB for your home, or a Sort D MCB for your factory, knowing the difference is key.
